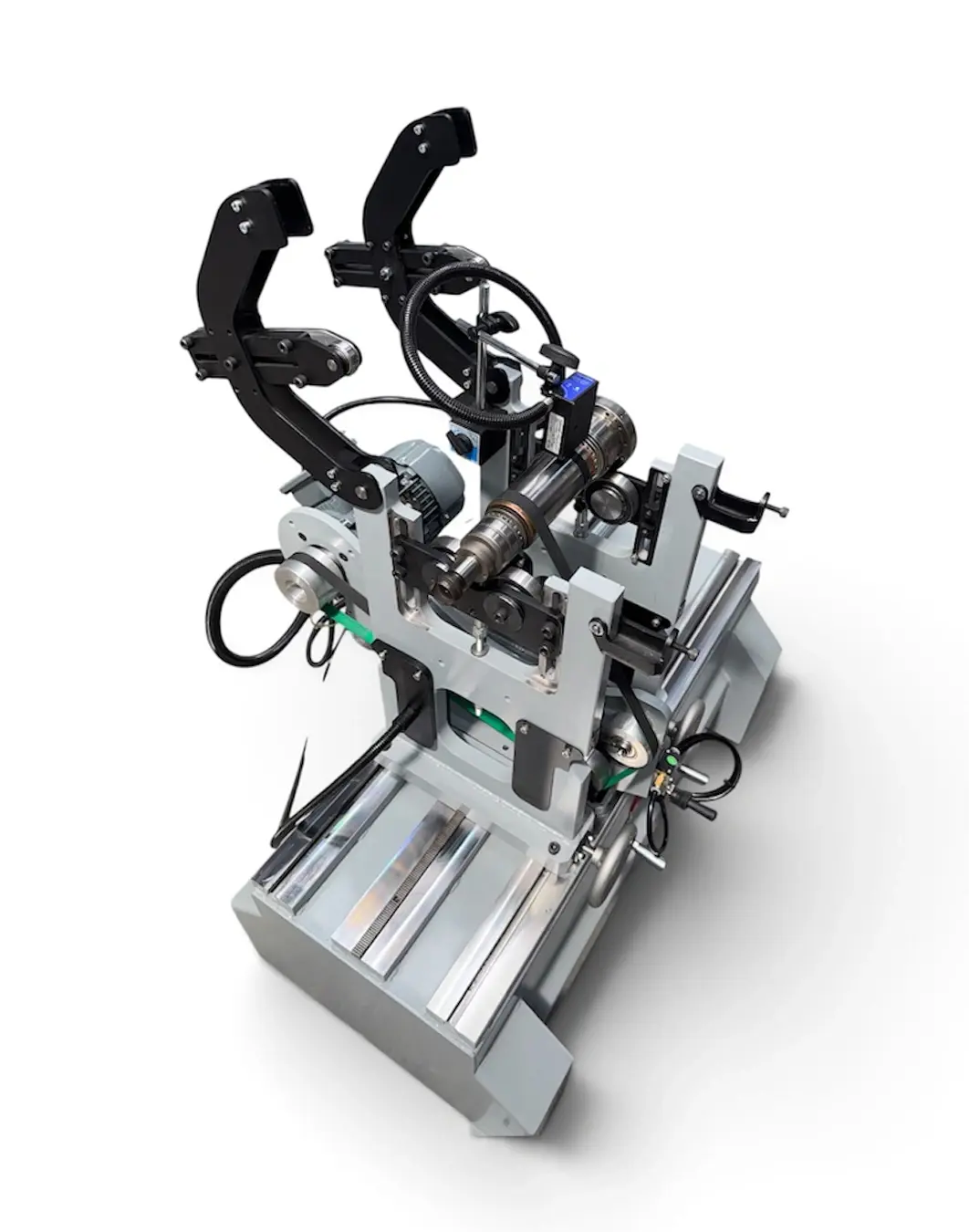

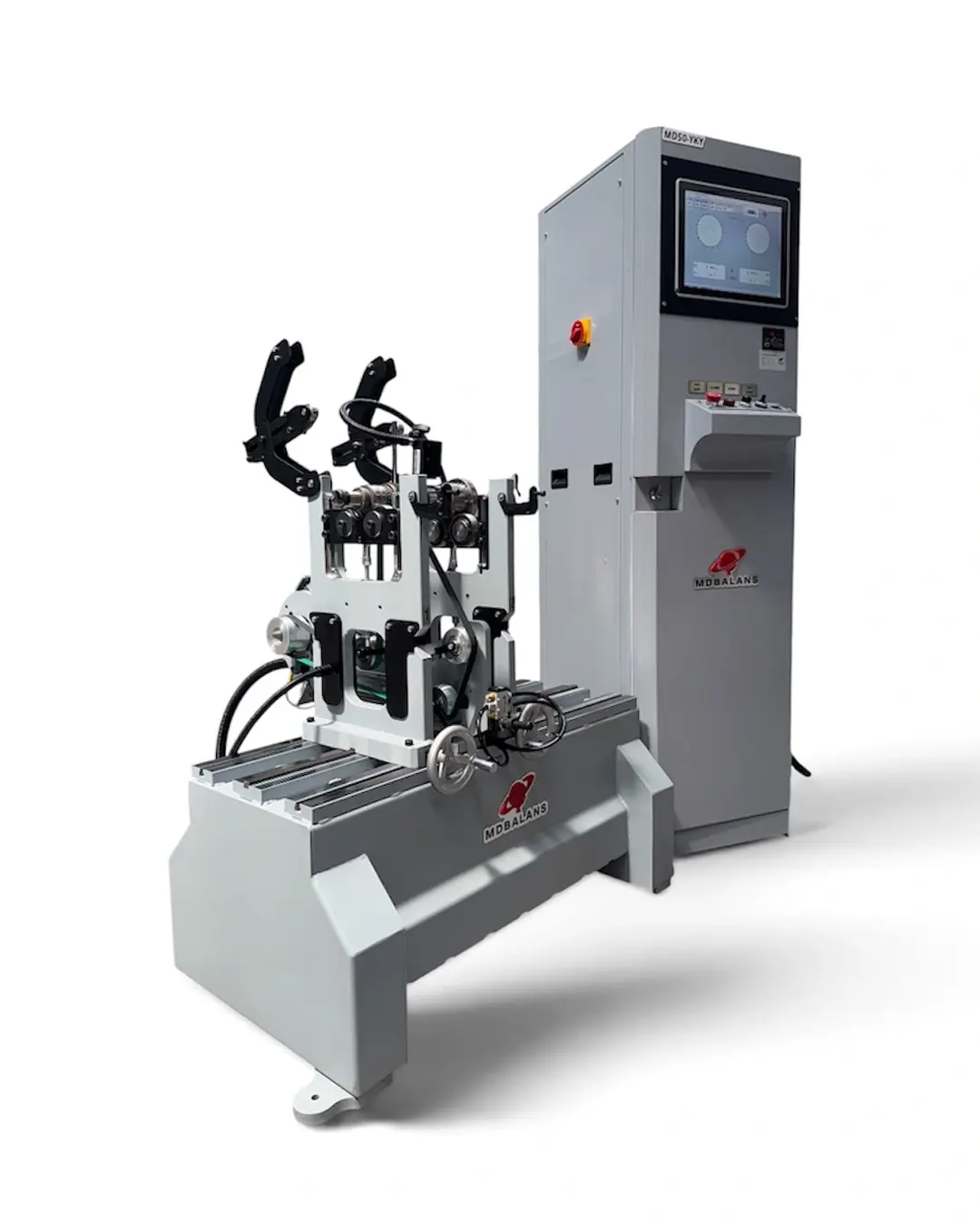

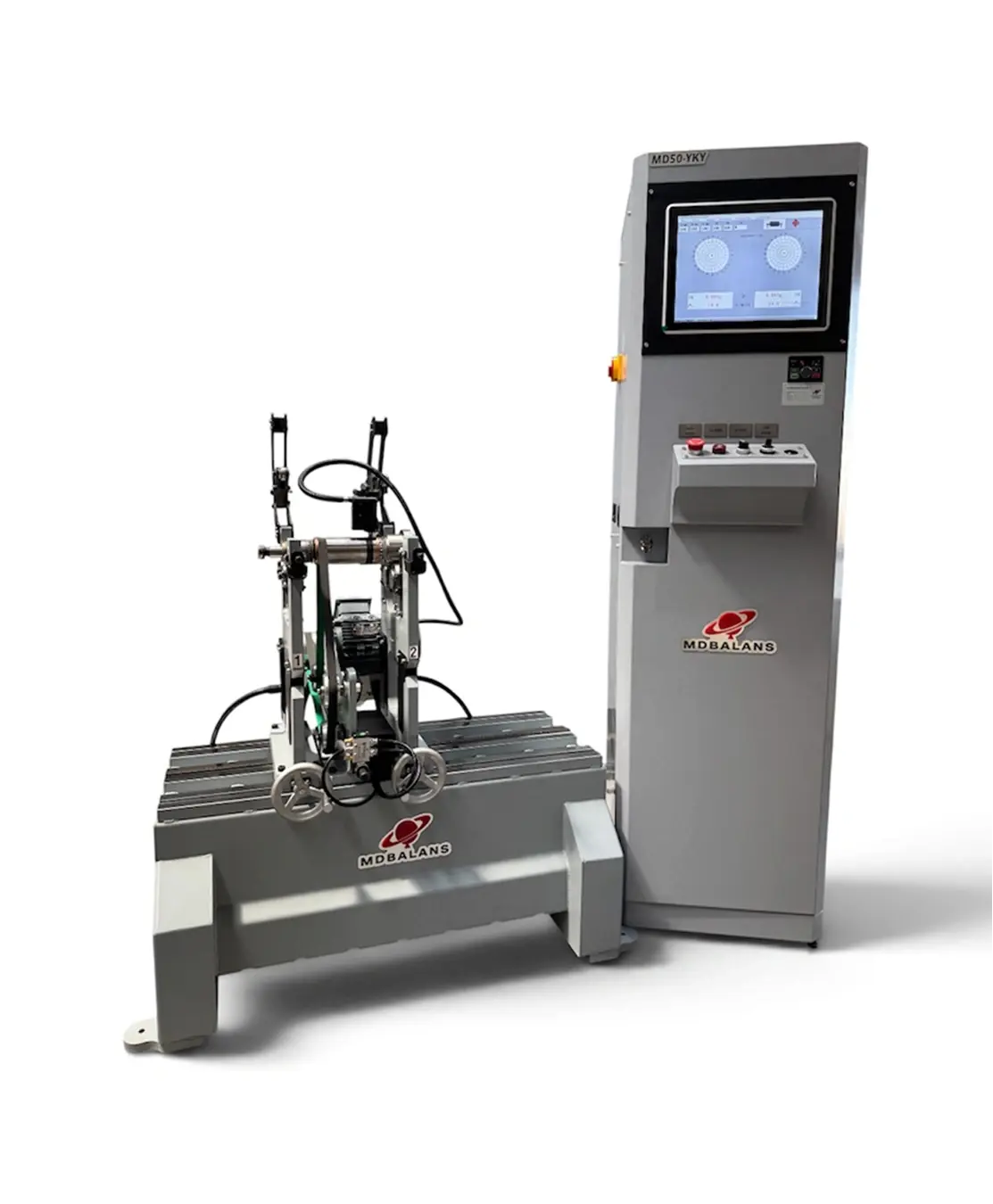

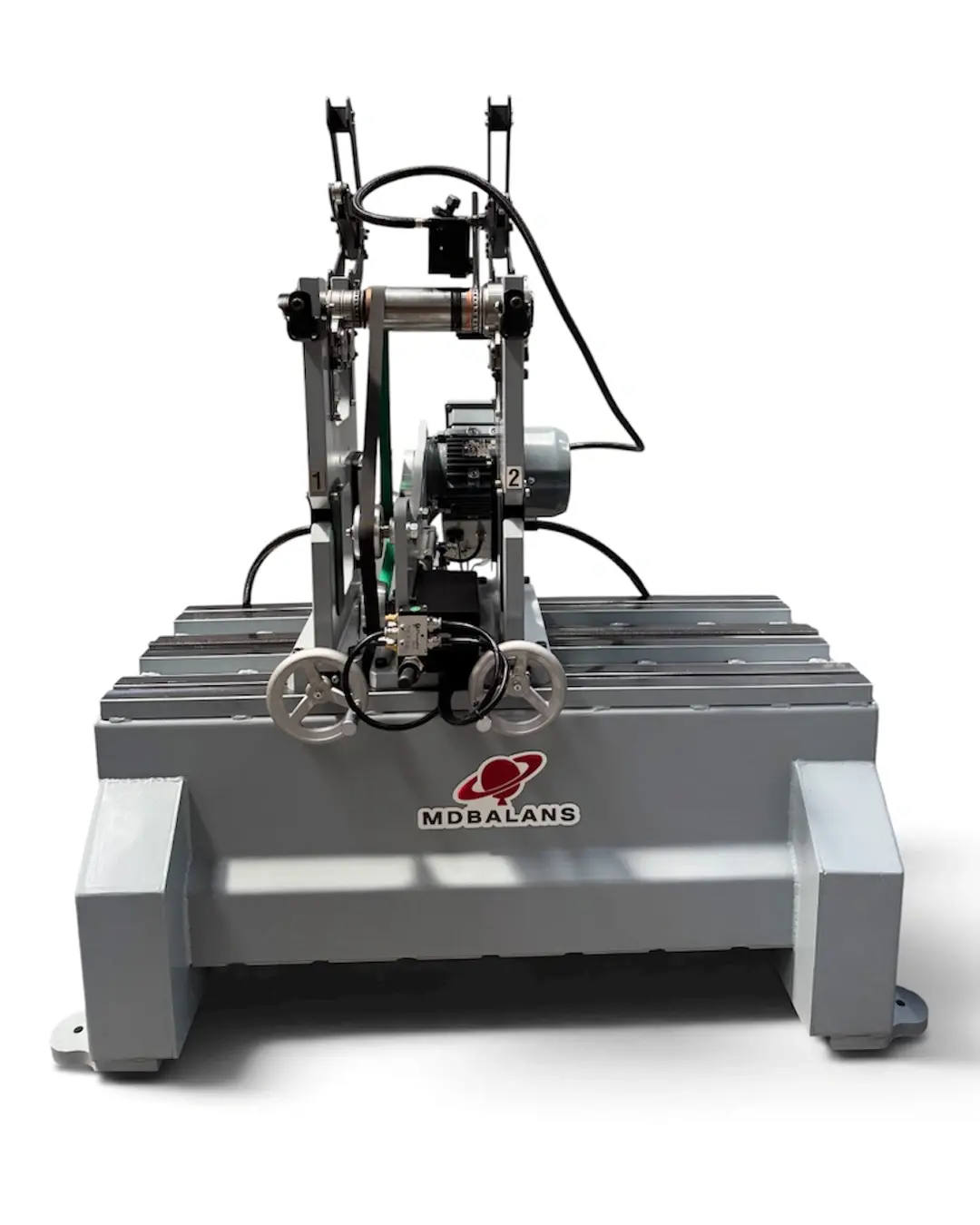

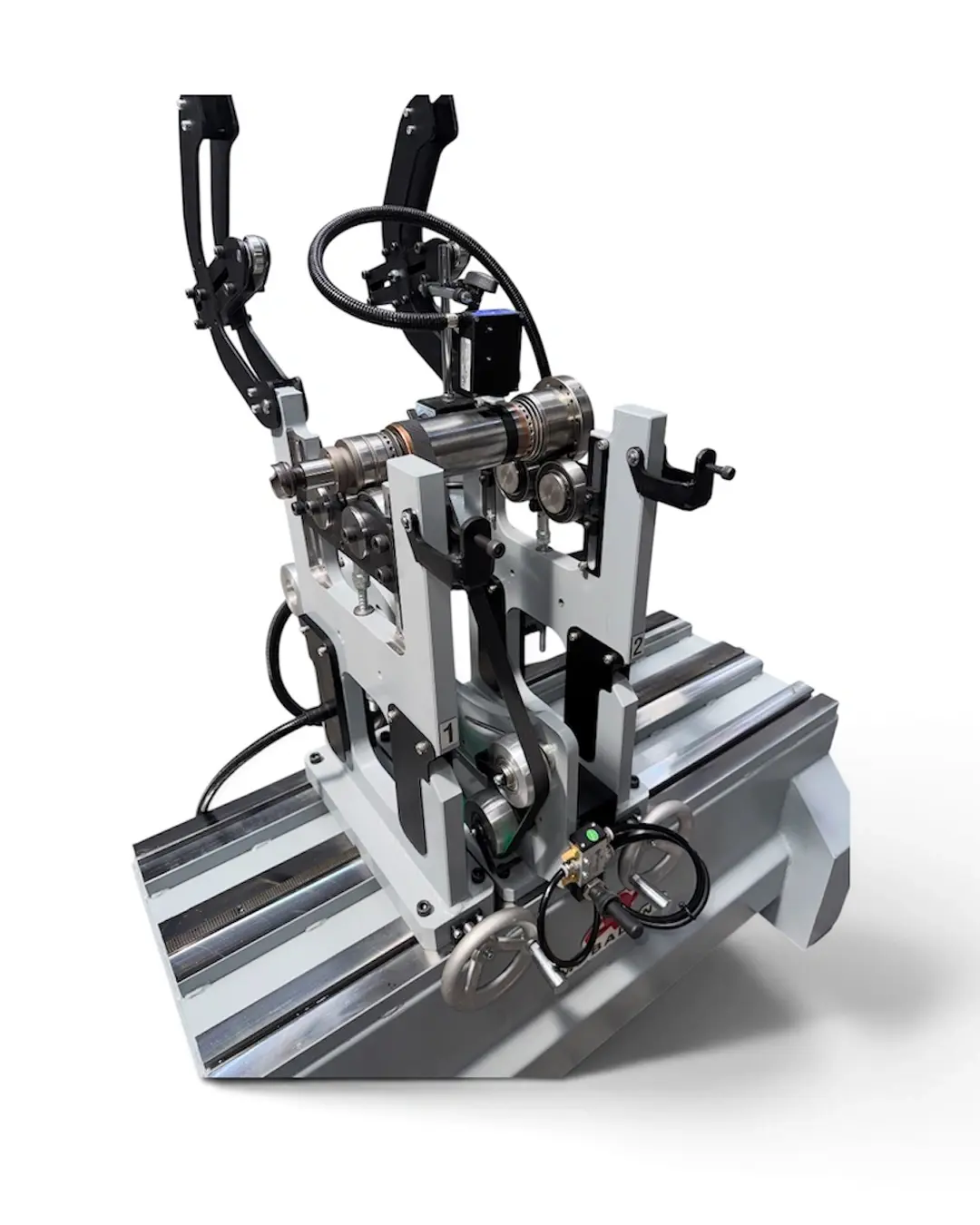

The spindle balancing machine is an industrial balancing solution designed for precise balancing measurements of different rotors and components. With its belt-driven system, high rotational speed and advanced measurement features, it can be used for both static and dynamic balancing applications.
```| Drive Type | Belt Driven |
|---|---|
| Maximum Capacity | 50 kg |
| Minimum Part Weight | 3 kg |
| Maximum Rotor Diameter | 500 mm |
| Part Length | 1500 mm |
| Rotor Journal Diameter | 200 mm |
| Number of Planes | 2 |
| Balancing Quality Rate | 98% |
| Minimum Unbalance | ISO 1940 / ISO 21940 |
| Power - Electrical | 380 V, 50 Hz, 3 Phase |
| Motor Power | 1.5 kW |
| Maximum Rotational Speed | 4,000 rpm |
| Minimum Rotational Speed | 200 rpm |
The spindle balancing machine allows users to select static or dynamic measurement screens. Different adapter options suitable for the component connection can be used, while additional program language support can be added according to requirements. Balancing values can be displayed in polar or digital numerical format.
For balancing solutions suitable for different industrial applications, you can explore the balancing machines product range.

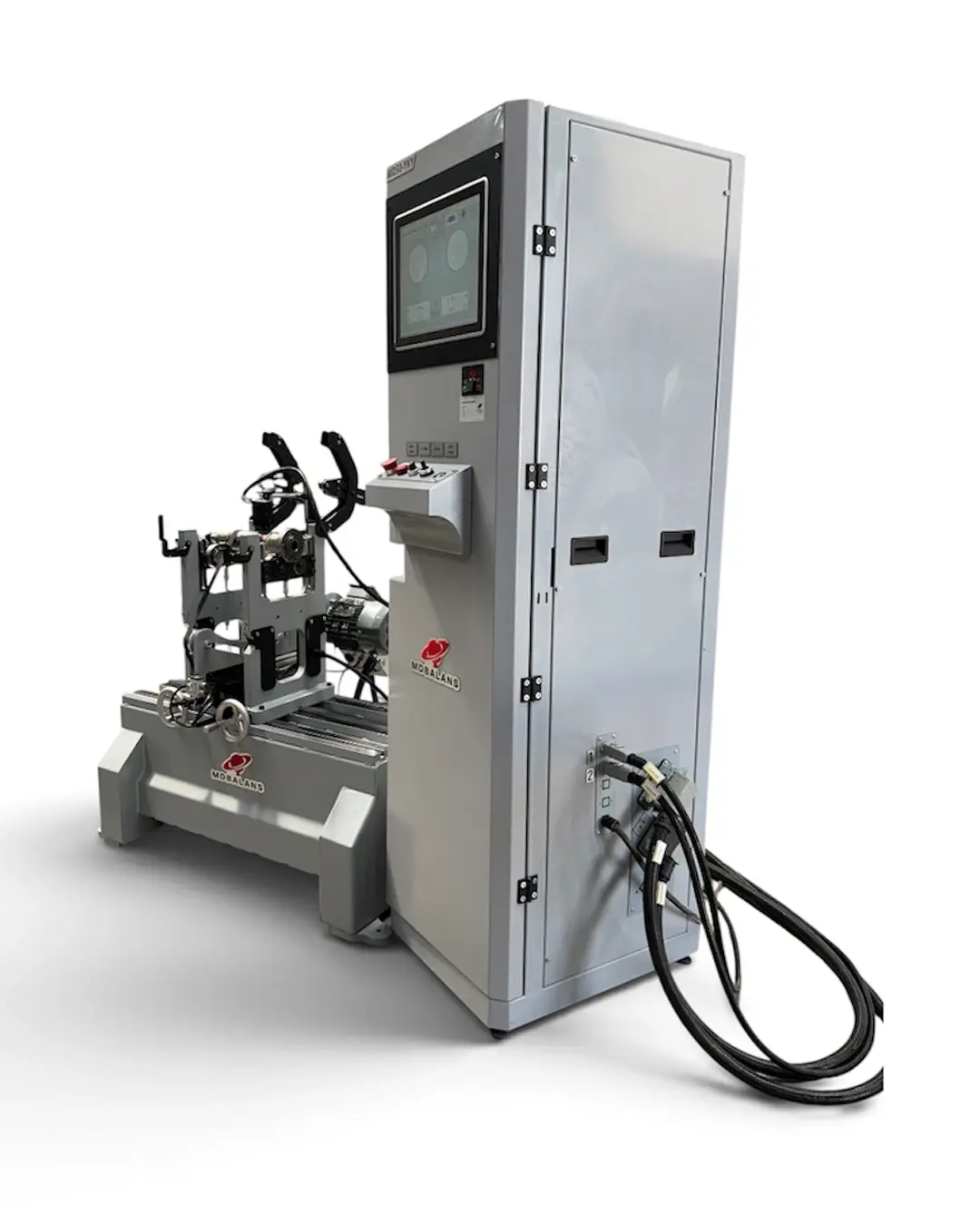

The machine operates with Microsoft Windows 10-11 and features a 15-inch industrial touch screen. With 256 GB SSD storage, measurement results are automatically recorded and backed up. The rotor database provides a fast search function for previously registered components.
The customized reporting function records the balancing value, balancing grade, operator name, date and time. Measurement results can be exported in Excel format or printed on A4 paper using the laser printer.
For detailed information about the spindle balancing machine and application-specific balancing solutions, visit the MDBalans contact page.
